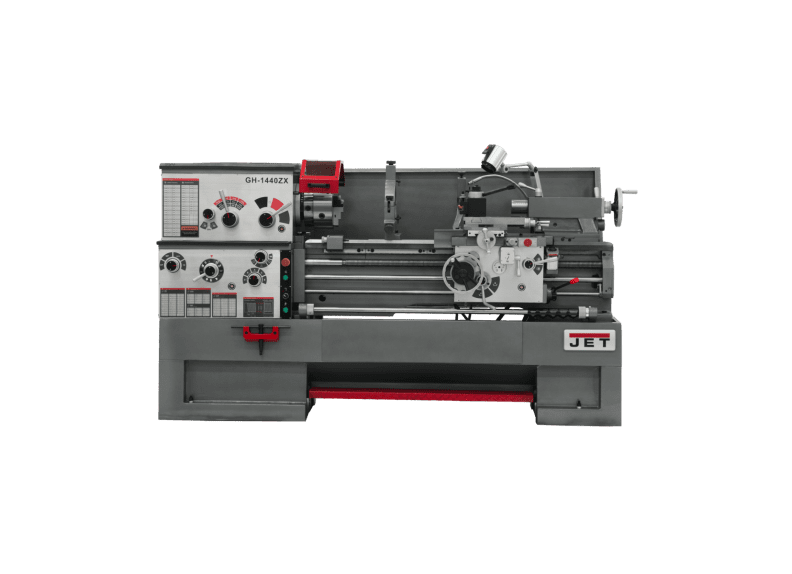

GH-1440ZX, 3-1/8" Spindle Bore Geared Head Lathe
Stock Number:
JT9-321910
GH-1440ZX, 3-1/8" Spindle Bore Geared Head Lathe
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10” three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
One-piece cast iron base absorbs vibration allowing heavier cuts
Centrally located controls with jog button
Electronic Chuck Key Holder
Five position automatic carriage stop increases productivity
Full length splash guard and coolant return
Large capacity steady rest with ball bearing tips
Front removable chip pan
Chuck guard
Removable gap allows large diameter work
E-stop on carriage
| Stock Number | JT9-321910 |
|---|---|
| Bed Construction | Cast Iron |
| Carriage Travel (In.) | 36-9/16 |
| Compound Slide Travel (In.) | 5-1/8 |
| Cross Slide Travel (In.) | 9 |
| Distance Between Centers (In.) | 40 |
| Drive | Geared Head |
| Length of Gap (In.) | 12 |
| Max Tool Size (In.) | 1 x 1 |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph |
| Motor Power (HP) | 7-1/2 |
| Motor Voltage (V.) | 230/460 |
| Net Weight (Lbs.) | 4467 |
| Number of Inch Threads | 61.0000 |
| Number of Longitudinal and Cross Feed Rates | 46/31 |
| Number of Metric Threads | 24.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 96 x 44 x 66 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | .0006 - .0360 |
| Range of Inch Threads (TPI) | 1-5/8 - 72 |
| Range of Longitudinal Feeds (IPR) | .0015 - .0900 |
| Range of Metric Threads | .05 - 20 |
| Range of Spindle Speeds (RPM) | 42 - 1,800 |
| Size | 14 x 40 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-8 |
| Spindle Speeds | 42 - 1,800 |
| Spindle Taper | MT-7 (with sleeve MT-5) |
| Spindle Taper with Sleeve | MT-7 (MT-5) |
| Steady Rest Capacity (In.) | 3/8 - 7 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 7-5/8 |
| Swing Through Gap (In.) | 23-5/8 |
| Tailstock Spindle Travel (In.) | 6 |
| Taper in Tailstock Spindle | MT 4 |
| Weight (Lbs.) | 5187 |
| Width of Bed (In.) | 13-1/8 |
| Wiring Remarks | Additional Fee required to rewire to 460V |
| Follow Rest Capacity (In.) | 1/2 - 3-1/2 |
