JDC-500 Bench Dust Collector 1/3HP, 115V, Single Phase
Stock Number:
JT9-414850

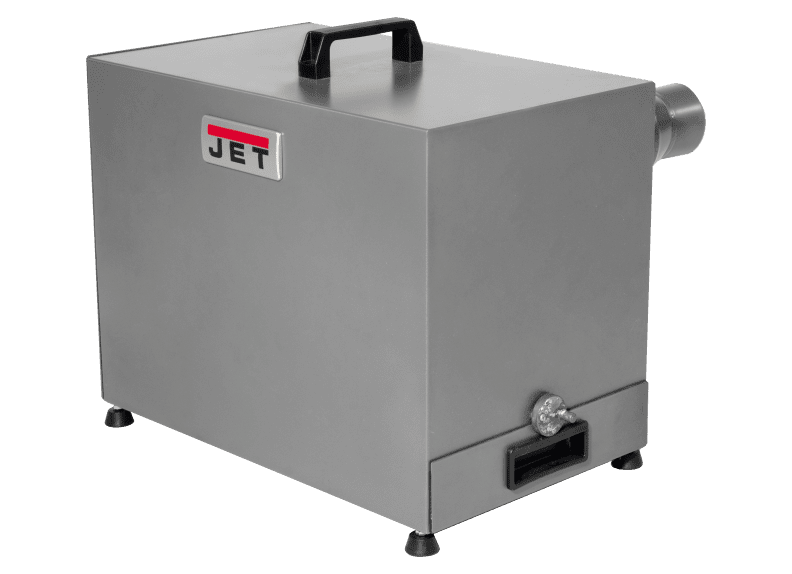

JET JDC-500B Bench Dust Collector, 1/3HP, 115V, Single Phase (414850)
JET's new Bench Dust Collector is great for collecting abrasive dust from Belt & Disc finishing and grinding machines in your home or small shop. Chips and dust collect into a metal drawer that is easy to clean. The convenient optional casters allow for use throughout your shop. Enhance the health and safety levels in your shop with JET.
CSA/US: Following strict guidelines and electrical requirements, this JET Industrial Dust Collector is CSA/US certified
Simple and easy to clean-out chip & dust drawer
Easy to change exhaust filter
All steel construction
Non-sparking aluminum housing and fan blade
Portable on 4 casters and 2 handles for ease of movement
Quite, effective dust collection method
| Stock Number | JT9-414850 |
|---|---|
| Dust Port Size (In.) | 3 |
| Filter Size (W x L x D) (In.) | 11-25/32 x 10-15/32 x 1-3/16 In. |
| Maximum CFM | 490.0000 |
| Maximum Hose Velocity (SFPM) | 5610.0000 |
| Motor Amps | 3.5 |
| Motor (HP) | 1/3 HP, 115V, 1Ph |
| Motor Voltage (V.) | 115 |
| Overall Dimensions (L x W x H) (In.) | 30-5/8 x 20-7/8 x 29 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 75 |
| Style (Type) | Dust Collector |
| Weight (Lbs.) | 49 |
| Air Flow (CFM) (High) | 176 |
| Filter Efficiency | MERV 13 |
| Inner Filter Efficiency (MERV) | 13 |
| Inner Filter Material | Anti-spark/Fireproof |
| Electrics | 1-1/2HP, 115V, 1Ph |
| Filter Type | Anti-Spark / Fireproof |
| Gross Weight (Lbs) | 251 |
| Net Weight (Lbs.) | 212 |
| Noise Level @ 3ft (Decibel dB) High/Medium/Low | 75 |
| Number of Ports | 1 |
| Port Size (in.) (with Adaptor) | 3 |
