JDP-20VS-1 1-1/4 Drilling Capacity, 2HP, 115/230V, 1Ph
Backorder
Stock Number:
JT9-354230

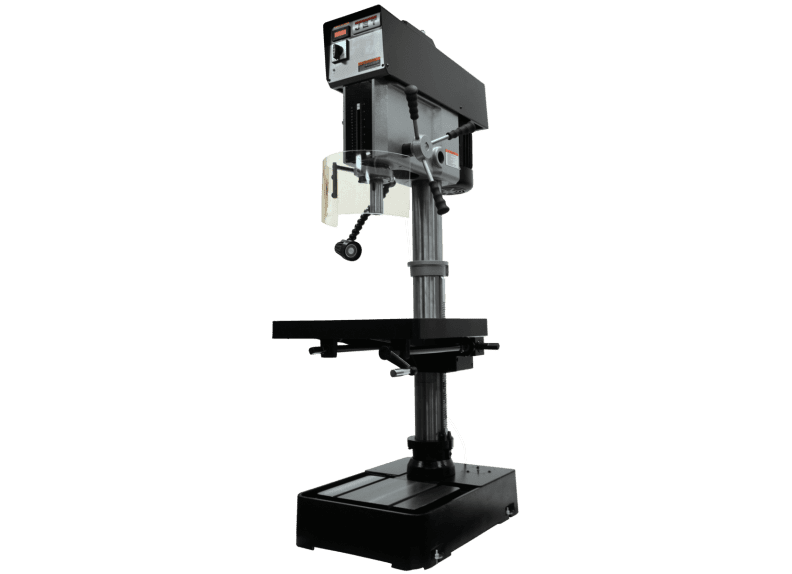

The JET JDP-20VS-1 1-1/4 Drilling Capacity, 2HP, 115/230V, 1Ph
Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.
CSA/CUS Certified
Front Mounted LED Spindle RPM Readout
Front mounted positive control depth stop
Head is massively constructed for more accuracy and rigidity and heavy duty cast iron design
Massive 3" quill diameter
Large Hand Grips designed with the users comfort in mind
Large precision ground T-Slot production table for easy set ups
Drill Chuck is not included
Table rotates 360° around the column
Variable spindle speeds
| Stock Number | JT9-354230 |
|---|---|
| Assembled Machine Dimensions (L x W x H) (In.) | 42-1/2 x 27 x 78-3/4 |
| Base Dimensions (In.) | 27 x 19 |
| Base Size (In.) | 27 x 19 |
| Base Slots Number & Size (In.) | 3 & 5/8 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Drilling Capacity Cast Iron (In.) | 1-1/4 |
| Drilling Capacity Mild Steel (In.) | 1 |
| Drills to Center of Circle (In.) | 20 |
| Gross Weight (Lbs) | 780 |
| Motor (HP) | 2HP, 115/ 230V, 1ph ,4P |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 115/230 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x79.52 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 300 - 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Spindle Speed Range (RPM) | 300 - 2000 |
| Spindle Speed (RPM) | 300 - 2000 |
| Spindle Taper | MT3 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| Swing (In.) | 20 |
| T-Slot Centers (In.) | 7-7/16 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Table Travel (In.) | 20 |
| Weight (Lbs.) | 780 |
| Work Table Weight Capacity (Lbs.) | 154 |
