JOSS-S, Floor Model Oscillating Spindle Sander, 1HP, 1Ph, 115V
Stock Number:
JT9-723950

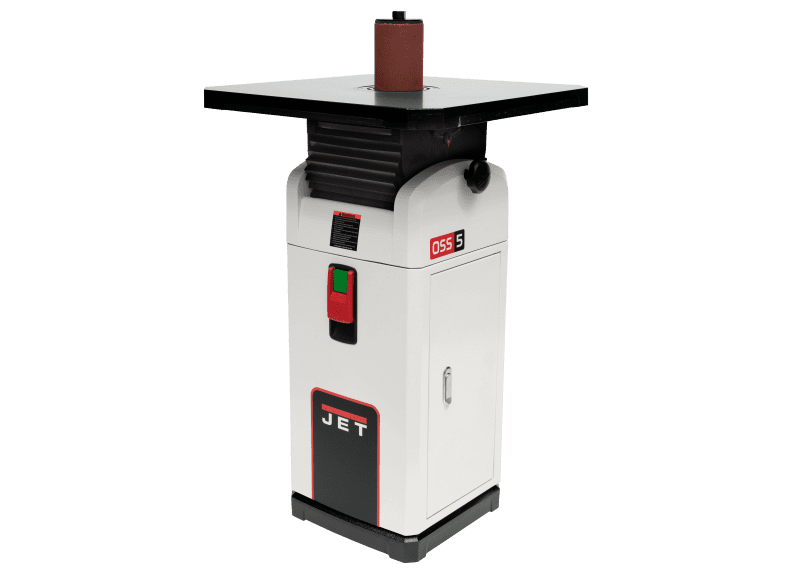

JET JOSS-S Oscillating Spindle Sander, 1HP, 1Ph 115V (723950)
Enhanced Bullet 1:
24 1/2" x 24 1/2" Table
Enhanced Bullet 2:
115/230 volts
Enhanced Bullet 3:
75 Oscillations per minute
Enhanced Bullet 4:
6 Table inserts
Are you ready to take the hassle out of sanding? The JET Oscillating Spindle Sander is designed to deliver what you need in one fantastic machine. Featuring a spindle lock and threaded ends for quick and easy changes as well as a superior dust collection and integrated storage for inserts makes this sander have it all. Experience a machine, and results, that are Polished At Every Angle.
1-1/2" Oscillating action reduces friction heat to protect wood and prolong sleeve life
Baffles create a chamber under the table for improved dust collection
Includes 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/2", 2", 3" and 4" spindle assemblies
Integrated paddle switch with safety key
Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
Powerful 1HP motor is independently mounted inside the base for easy access and service
Sealed access door minimizes dust in the storage area
Table tilts 45° front and 15° back and features a 90° quick index
Worm and gear mechanism runs in an oil bath to prolong its life and durability
| Stock Number | JT9-723950 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 300 |
| Dust Port Outside Diameter (In.) | 4 |
| Gross Weight (Lbs) | 256 |
| Motor Amps | 11/5.5 |
| Motor Power (HP) | 1 |
| Motor Voltage (V.) | 115/230 |
| Net Weight (Lbs.) | 216 |
| Oscillations Per Minute | 75 |
| Overall Dimensions (L x W x H) (In.) | 24 1/2 x 24 1/2 x 44 3/16 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Spindle Speed (RPM) | 1720 |
| Style (Type) | Oscillating Spindle Sander |
| Table Height from Floor (In.) | 39-3/16 |
| Table Size (L x W) (In.) | 24-1/2 x 24-1/2 |
| Table Tilt (Deg.) | 45 front/ 15 back |
