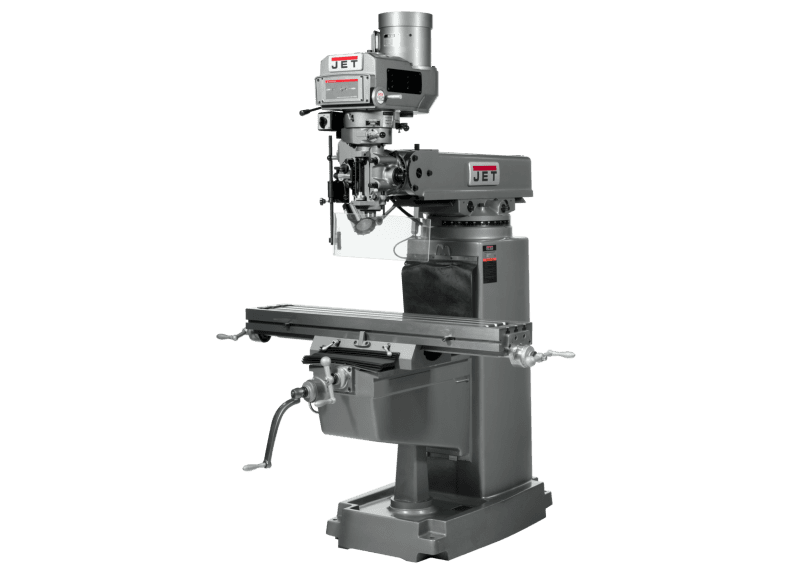

JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block
Stock Number:
JT9-690235
JTM-1050 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block
Featuring Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.
Adjustable gibs throughout
Chrome lead screws on X and Y axis
Chrome-plated motor shaft with bearing support at end
Hardened and ground square vertical knee ways and cross ways
Heavy duty motor drive
Locks on all moveable surfaces
One shot lubrication system
Spindle head is internally cooled
Three stage power downfeed with automatic stop
Tolerance test sheet included
| Stock Number | JT9-690235 |
|---|---|
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 26 |
| Max Distance Spindle to Table (In.) | 19 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 96 x 78 x 88 |
| Power Draw Bar | Pneumatic |
| Powerfeed | X-Axis |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 70 - 3,800 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/4 |
| Table Longitudinal Travel (In.) | 35 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-3/4 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 14-1/4 |
| Travel of Ram (In.) | 20-1/2 |
| Weight (Lbs.) | 2900 |
| Work Table Weight Capacity (Lbs.) | 720 |
