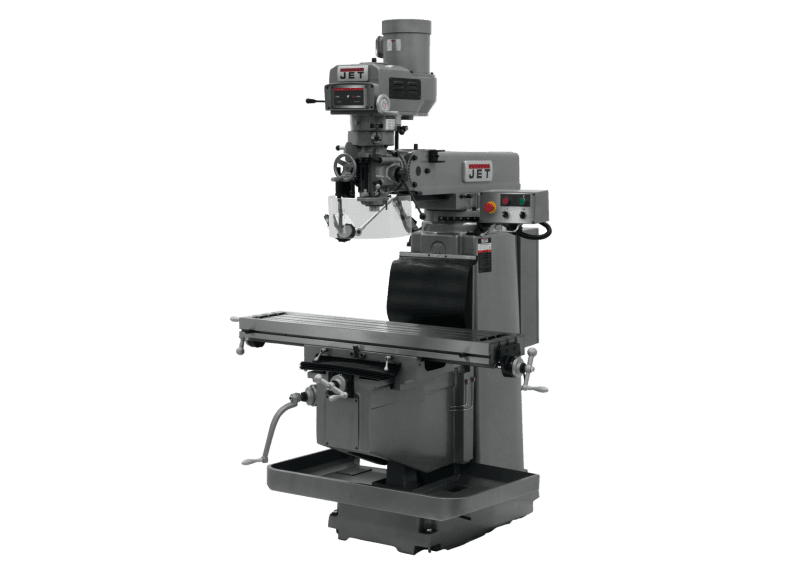

JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph
Stock Number:
JT9-690020
JTM-1254RVS MILL, 12" x 54" Table, R-8 Taper, 5HP, 230/460V , 3Ph
This JET® 12" x 54" Vertical Metal Mill features the rugged stability of Meehanite® Castings to ensure that every job is up to your standards.
Adjustable gibs throughout
Dual locks on all moveable surfaces
Heavy-duty spindle brake
Precision bored and honed milling head
Precision hardened and ground ways and table
Spindle Brake for rapid stopping of the spindle
Three Precision ground t-slots
Three-stage power downfeed with automatic stop
Two 115V outlets on electrical box for Powerfeeds only
| Stock Number | JT9-690020 |
|---|---|
| Collet Capacity | 1/8 - 1 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 92-1/8 x 79-7/8 x 104-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015–.003–.006 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel (In.) | 33-7/8 |
| Table Longitudinal Travel With Powerfeed (In.) | 28-1/4 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Weight (Lbs.) | 3969 |
| Work Table Weight Capacity (Lbs.) | 925 |
