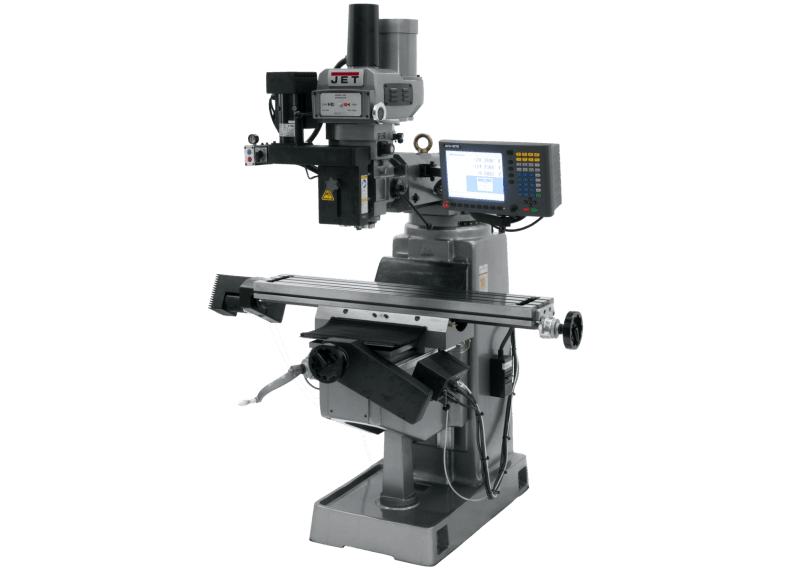

JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC
Stock Number:
JT9-690575
JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time, while also providing an easier solution to leveling the machine. The inverter drive system and emergency stop located on a swing away control arm that moves all major functions within the operators reach. Our automatic lubrication cycles every 30 minutes with a flow of 3-6cc to reduce maintenance. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.
Adjustable gibs throughout
Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
Dual locks on all moveable surfaces
Heavy-duty spindle brake
Internal coolant tank built into casting base
Precision bored and honed milling head
Precision hardened and ground ways and table
Quick spindle feed nut easily adjusts to different depths
Three-stage power downfeed with automatic stop
Two 115V outlets on electrical box for DRO or powerfeeds
| Stock Number | JT9-690575 |
|---|---|
| CNC Package | ACU-RITE MILLPWR® G2 |
| Collet Capacity | 1/8 - 7/8 |
| Column Width (In.) | 18 |
| Distance Spindle to Column (Max.) (In.) | 18-1/8 |
| Inverter Type | Delta, B |
| Max Distance Spindle to Table (In.) | 20-3/4 |
| Motor (HP) | 3HP, 230V, 3Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 67 x 64 x 86 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 60 - 4,500 |
| Saddle Width (In.) | 11-1/2 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | CNC |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12-5/8 |
| Table Longitudinal Travel (In.) | 36 |
| Table Longitudinal Travel With Powerfeed (In.) | 30-3/4 |
| Table Size (L x W) (In.) | 9 x 49 |
| Travel of Knee (In.) | 15-3/4 |
| Travel of Ram (In.) | 15-1/4 |
| Weight (Lbs.) | 2420 |
| Work Table Weight Capacity (Lbs.) | 720 |
