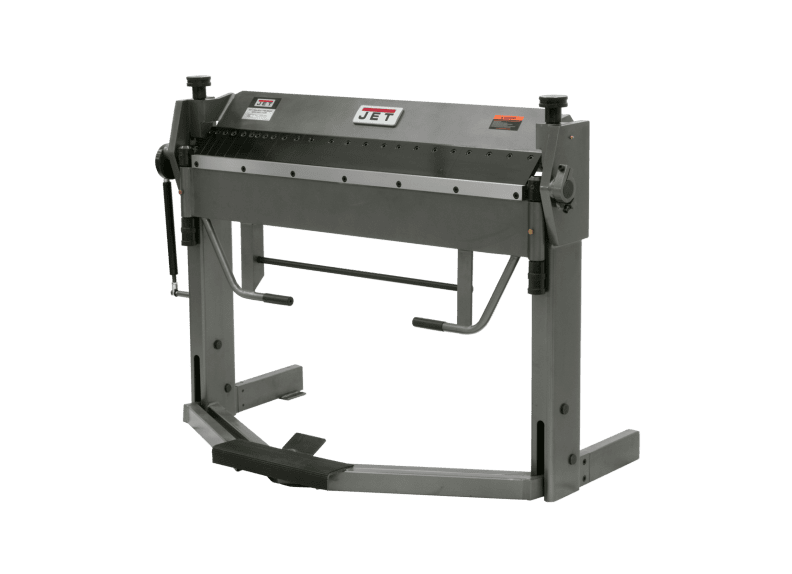

BPF-1450, 50" x 14 Gauge Box & Pan Brake With Foot Clamp
Stock Number:
JT9-752127
BPF-1450, 50" x 14 Gauge Box & Pan Brake With Foot Clamp
Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.
Air spring to assist in raising the clamping handle
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Black Ceramic Coated Fingers prevent rust and ensure longer finger life
Material clamping is foot operated to save strain on back and arms
Stop rod for repeat bending
Wide assortment of finger widths allow greater versatility in the shop
| Stock Number | JT9-752127 |
|---|---|
| Bending Length Capacity (In.) | 50 |
| Finger Nose Angle (Deg.) | 42 |
| Maximum Box Depth (In.) | 2-1/2 |
| Maximum Lift of Beam (In.) | 1-7/8 |
| Mild Steel Capacity (Gauge) | 14.0000 |
| Nose Radius (In.) | 1/32 |
| Number and Width of Fingers (In.) | 1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8 |
| Overall Dimensions (L x W x H) (In.) | 67 x 28 x 50 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Floor Box and Pan |
| Weight (Lbs.) | 900 |
