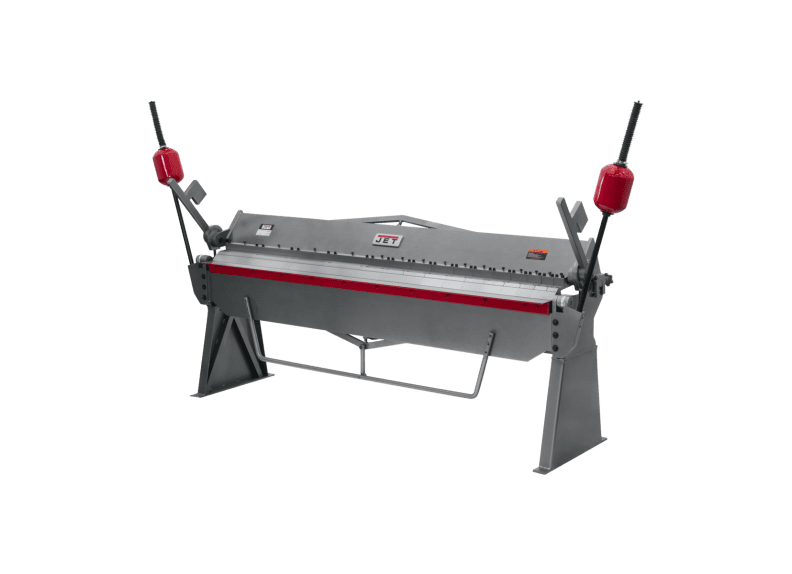

BPF-16100, 100" x 16 Gauge Floor Model Hand Brake
Stock Number:
JT9-754115
BPF-16100, 100" x 14 Gauge Floor Model Hand Brake
To accommodate space restraints in your shop, as well as forming and shaping needs of your operation JET Bench and Floor Model Hand Brakes, Bench Model Box and Pan Brakes, and Floor Model Box and Pan Brakes are designed to deliver superior accuracy and durability. Finger width assortments and removable finger sections enhance overall productivity in your facility. JET Brakes are built rugged to provide superior satisfaction with every bend you make
14 Gauge maximum capacity for aluminum and copper alloys
16 Gauge maximum capacity for mild steel
18 Gauge maximum capacity for stainless steel
All body sections are welded steel plate
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Both the bed and apron are bored in line to assure the utmost accuracy
Stop rod for repeat bending
Wide assortment of finger widths allow greater versatility in the shop
With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
| Stock Number | JT9-754115 |
|---|---|
| Beam Adjustment (Front to Rear) (In.) | 1 |
| Bending Length Capacity (In.) | 100 |
| Finger Nose Angle (Deg.) | 45 |
| Maximum Box Depth (In.) | 4 |
| Maximum Lift of Beam (In.) | 2-1/4 |
| Mild Steel Capacity (Gauge) | 16.0000 |
| Nose Radius (In.) | 1/32 |
| Number and Width of Fingers (In.) | 15 (4@12in, 4@6in, 3@5in, 1@4in, 1@3-1/2in, 1@3in, 1@2-1/2in) |
| Overall Dimensions (L x W x H) (In.) | 140 x 30 x 76 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Floor Box and Pan |
| Weight (Lbs.) | 2450 |
