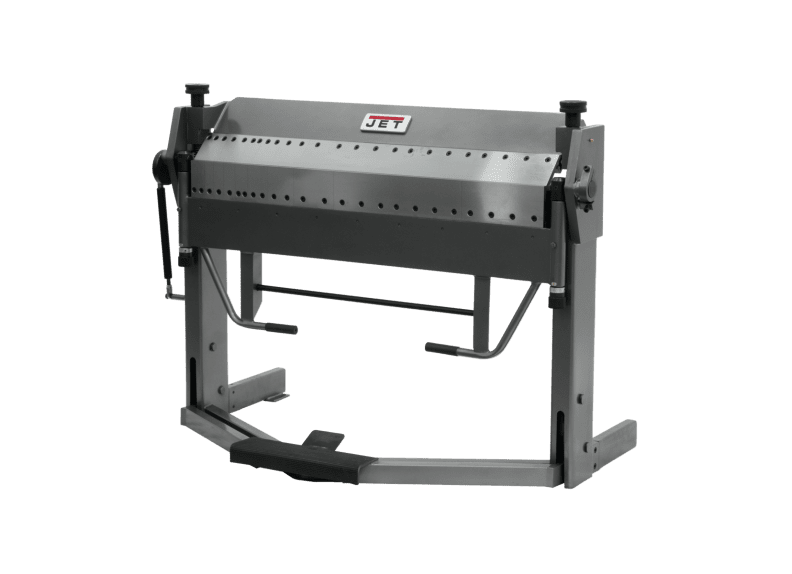

PBF-1640D 16GAX50 Dual Sided Box & Pan Brake with Foot Clamp
Stock Number:
JT9-752130
Achieve bending precision and versatility along with rugged durability. The dual-sided box and pan brake adapts to a wide range of applications. Easily add and remove upper and lower fingers for multiple bends. The JET-exclusive graduated scale on each side improves accuracy when setting lower beam parallelism.
All body sections are welded steel plate
All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
Hardened and ground fingers
Hydraulic spring to assist in raising the apron reduces strain on the operator
Large easy to use foot clamp allows the operator hands free clamping
Removable upper fingers and on the apron for greater versatility in making custom bends
Repeat bends are easy with a quick turn of the stop collar on the stop rod
Rubber stops on rear of lower arm to prevent contact with support frame
Set lower beam parallelism more accurately with graduated scale on each side
| Stock Number | JT9-752130 |
|---|---|
| Bending Length Capacity (In.) | 50 |
| Finger Nose Angle (Deg.) | 45 |
| Max. Clamping Bar Lift | 1.8100 |
| Maximum Box Depth (In.) | 2-1/2 |
| Mild Steel Capacity (Gauge) | 16.0000 |
| Number and Width of Fingers (In.) | 1 ea @ 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8 |
| Overall Dimensions (L x W x H) (In.) | 67-3/8 x 28 x 51-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 849 |
